MOTORCYCLE KYMCO VENOX 250 CARBURETOR 2009

MOTORCYCLE KYMCO VENOX 250
CARBURETOR-RED

KYMCO VENOX 250 CARBURETOR-BLACK

KYMCO VENOX 250 CARBURETOR-GRAY

KYMCO VENOX 250 CARBURETOR
-FRONT

MOTORCYCLE KYMCO VENOX 250
CARBURETOR-ROAD SHOW

MOTORCYCLE KYMCO VENOX 250 CARBURETOR 2009, NEW, MODELS, COLORS, ENGINE, SPECIFICATION, MANUFACTURER.
Engine Type V-twin DOHC 8 valve
Displacement 249cc
Horsepower 28hp
Bore/Stroke 58x47.2
Max Torque 14.0 / 8000
Cooling System Liquid
Ignition Electric
Gearbox 5 Speed
Chassis Steel
Front Suspension Telescopic forks
Rear Suspension Springs
Front Brake Single disc
Rear Brake Drum
Front Wheel/Tire 120/80-17
Rear Wheel/Tire 150/80-15
Seat Height 29 in.
Wheelbase 63 in.
Fuel Capacity/MPG 3.7 gals./ Estimated 61
Weight 418.5 lbs.
Available Colors Blue-Black or Deep Red

Read more »

MOTORCYCLE KYMCO VENOX 250 FUEL INJECTION 2009

MOTORCYCLE KYMCO VENOX 250
FUEL INJECTION-RED

MOTORCYCLE KYMCO VENOX 250

FUEL INJECTION-BLACK

MOTORCYCLE KYMCO VENOX 250 FUEL INJECTION 2009, NEW, MODELS, COLORS, ENGINE, SPECIFICATION, MANUFACTURER. The KYMCO Venox 250 has the look of a big cruiser with plenty of visual appeal. Yet it is light in weight, easy handling, and even easier on the pocketbook. KYMCO's proven 250cc V-twin, 8 valve DOHC engine provides the power, a 5-speed gearbox delivers it to the road. The Venox is an impressive bike for any entry- level rider or any seasoned rider looking for a motorcycle that's just a real blast to own. A beautiful finish with plenty of chrome and available accessories rounds out this already complete package.

Read more »

MOTORCYCLE KYMCO QUANNON 150 2011

MOTORCYCLE KYMCO QUANNON 150 2011, NEW, MODELS, COLORS, ENGINE, SPECIFICATION, MANUFACTURER.
Engine Type Oil cooled, 4 valve, SOHC, 4 stroke
Displacement 149.3 cc
Bore & stroke 62 x 49.5 mm
Clutch Type Wet Multi Disk
Compression ratio 11:1
Valve train S.O.H.C., chain drive
Fuel Delivery Keihin Carburetor
Ignition CDI
Transmission 5 Speed Manual
Spark plug CR8E
Emission CEPA Environmental Registered
Fuel capacity 13.5 litres
Tires 110/80-17 front; 140/70-17 rear
Front Suspension Telescopic Forks
Rear Suspension Dual Adjustable Shocks
Front Brakes Drilled Disk / Dual Piston Caliper
Rear Brakes Drilled Disk / Dual Piston Caliper
Instrument cluster Digital Speedometer, Analog Tach

Read more »

MOTORCYCLE KTM 50 SX 2011

MOTORCYCLE KTM 50 SX-OFFROAD COMPETITION SX

motorcycle, KTM, 50 SX, OFFROAD COMPETITION SX, new, models, specifications, manufacturer, features, engine, colour
Engine type Single cylinder, 2-stroke
Displacement 49 cc
Bore x stroke 39.5 x 40 mm (1.55 x 1.57")
Starter Kickstarter
Transmission Single gear automatic
Carburetor Dell'Orto PHVA 12 XS
Engine lubrication Separate Lubrication
Primary drive 61:33
Final drive 10:42
Cooling Liquid cooled
Clutch Centrifugal clutch (adjustable)
Ignition Seletra 2p D36

Read more »

MOTORCYCLE KTM 990 ADVENTURE 2011

MOTORCYCLE KTM 990 ADVENTURE-ROAD SHOW

KTM 990 ADVENTURE 2011
-ROAD SHOW

MOTORCYCLE KTM 990 ADVENTURE-
LEFT FRONT

MOTORCYCLE KTM 990 ADVENTURE
-ORANGE

MOTORCYCLE KTM 990 ADVENTURE
-RIGHT REAR

MOTORCYCLE KTM 990 ADVENTURE
-LEFT FRONT

motorcycle, KTM, 990 ADVENTURE, ADVENTURE, new, models, specifications, manufacturer,
features, engine, colour

Read more »

MOTORCYCLE KTM 990 SUPERMOTO R 2011

MOTORCYCLE KTM 990 SUPERMOTO R

motorcycle, KTM, 690 DUKE, NIKED BIKE, new, models, specifications, manufacturer, features, engine, colour

Read more »

MOTORCYCLE KTM 690 DUKE- 2011 NIKED BIKE

MOTORCYCLE KTM 690 DUKE- NIKED BIKE

KTM 690 DUKE- 2011 NIKED BIKE

KTM 690 DUKE- NIKED BIKE

MOTORCYCLE KTM 690 DUKE

MOTORCYCLE KTM 690 DUKE- 2011 NIKED BIKE. motorcycle, KTM, 690 DUKE, NIKED BIKE, new, models, specifications, manufacturer, features, engine, colour.

Read more »

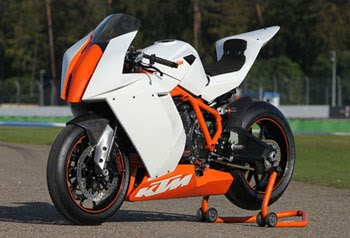

MOTORCYCLE KTM 1190 RC8R TRACK- 2011 SPORTBIKE

MOTORCYCLE KTM 1190 RC8R TRACK

KTM 1190 RC8R TRACK- SPORTBIKE

KTM 1190 RC8R TRACK

MOTORCYCLE KTM 1190 RC8R TRACK- 2011 SPORTBIKE. motorcycle, 2011, KTM, 1190 RC8R Track, Sportbike, new, models, specifications, manufacturer, features, engine, chassis, color, colour.
Specifications KTM 1190 RC8 R Track
» Performance 180 PS
» Akrapovic EVO exhaust
» Enclosed is a thinner head gasket to increase compression
» Race mapping
» Race air filter
» WP Suspension Racing suspension
» Automatic quickshifter
» Racing wiring harness
» Complete race cladding
» KTM PowerParts foot pegs
» KTM PowerParts Fold down hand lever
» Racing seat
» Racing brake pads
» Racing chain with alu rear sprocket
» KTM PowerParts racing tank lid
» KTM PowerParts rear stand
» KTM PowerParts crash pads and protective cover
» Slick tires 17`
» White lacquer with orange number field

» Performance 180 PS
» Akrapovic EVO exhaust
» Enclosed is a thinner head gasket to increase compression
» Race mapping
» Race air filter
» WP Suspension Racing suspension
» Automatic quickshifter
» Racing wiring harness
» Complete race cladding
» KTM PowerParts foot pegs
» KTM PowerParts Fold down hand lever
» Racing seat
» Racing brake pads
» Racing chain with alu rear sprocket
» KTM PowerParts racing tank lid
» KTM PowerParts rear stand
» KTM PowerParts crash pads and protective cover
» Slick tires 17`
» White lacquer with orange number field

Read more »

NORTON NOT MAMMUT

Reader Mick King, owner of Superformance Motorcycles in Vancouver (one of the first performance/custom bike shops in Western Canada) built an interesting special in the late 1960s, using a Norton Featherbed frame and a salvaged NSU car engine. This was around the same time Friedl Münch was building his first specials along the same lines; the Norton/NSU makes an interesting comparison to the Mammüt (see my road test here) and another contemporary special using an NSU engine; the Bison.  Mick's Norton/NSU special now lives in the Trev Deeley Museum in Vancouver, Canada.

'In the 1960s, there were no NSU dealers in Vancouver, and the car owners couldn't get them repaired... I had a motorcycle shop, and would fix a few NSU cars because I had managed an NSU dealership in the UK.  They were so simple to work on, it was a good revenue source and sideline to my motorcycle business, which was one of the first on BCs west coast.  I took in a trade an NSU 1200 TT car for two hundred bucks; due to rat infestation and rust the car was gutted and the wheels and sundry items sold off. I kept looking at the engine thinking it might look good in one of my Norton Featherbed frames, which owed me nothing... I had a couple gathering dust in the attic!

As winter started in, the bike work stopped; I had just brought over an apprentice from the UK, and a new 9-1/2" South Bend lathe for our custom bike division, and decided to see if we could fit the NSU motor into the Norton frame. This gave the new arrival some valuable turning experience.  We wanted the engine to fit the existing Norton engine mounts, as I did not want to mess up the frame for the sake of the NSU engine; I had no input or feedback as to how it may perform.  When the Münch showed up in Cycle Canada magazine I thought, "Great timing! Maybe I can find some encouragement from the article!"  But there was no data -no speed or bhp- as I recollect, the mag people were not allowed to ride it?  So we plodded on, and after a few weeks the engine was roughed-in, and we took it for a ride.  I could see why there was no data available - it was a gutless wonder, despite major engine work! I considered buying a twin-cam Japanese car engine but they were all snapped up for mini flat track race cars, as they are today!

Note: four Amal Concentric carbs, and reversed Norton gearbox.  Top photo shows four Norton Commando 'Peashooter' exhausts!

So I worked on the camshaft, flowed the cylinder head, calibrated the exhausts, put one large-bore carb onto each each inlet port, used premium fuel, etc, and finally managed to get 125mph out of it, which in the late sixties was not too shabby.  We painted it up black white + chrome, it looked kinda menacing! It was entered in bike shows from Vancouver to Seattle, and it won a lot of 1st place trophies. The whole project cost around fifteen hundred bucks.

Trying to draw a comparison with the Münch would be a waste of time in my opinion, considering the amount of money he invested, plus his engineering facilities and so on.  Nevertheless I think from the get-go the Münch Mammut was doomed, mainly because D.O.H.C. motorcycle engines [such as Kawasaki Z-1] were already making their debut, and strapping an antiquated and gutless S.O.H.C NSU car engine into such an enormous and costly project baffled me and my mechanics from the get go.  Then there was the price... ridiculous!'

Mick notes, "All of the information above is alleged! and relegated to my memory at the time."
Take a look at Mick's 'How To' photos on this later post.

Read more »

MOTORCYCLE KAWASAKI NINJA ZX-10R ABS 2011-TOURING

MOTORCYCLE KAWASAKI NINJA ZX-10R
ABS-ROAD SHOW

MOTORCYCLE KAWASAKI NINJA ZX-10R
ABS-GREEN

MOTORCYCLE KAWASAKI NINJA ZX
10R ABS-BLACK

MOTORCYCLE KAWASAKI NINJA ZX 10R
ABS-RIGHT FRONT

MOTORCYCLE KAWASAKI NINJA ZX-
10R ABS-RIGHT

MOTORCYCLE KAWASAKI NINJA ZX
10R ABS-ROAD

MOTORCYCLE KAWASAKI NINJA ZX-10R ABS 2011-TOURING,NEW, MODELS, COLOR, ENGINE, SPECIFICATION, CHASSIS, FRAME.DRIVETRAIN, Dimensions, FRAME.
ENGINE
Type Liquid-cooled, 4-stroke In-Line Four
Displacement 998 cm3
Bore and Stroke 76.0 x 55.0 mm
Compression Ratio 13.0:1
Valve System DOHC, 16 valves
Fuel System Fuel injection: ø47 mm x 4 (Keihin) with oval sub-throttles, dual injection
Ignition Digital
Starting Electric
Lubrication Forced lubrication, wet sump with oil cooler

DRIVETRAIN
Transmission 6-speed, return
Final Drive Sealed chain
Primary reduction ratio 1.681 (79/47)
Gear ratios: 1st 2.600 (39/15)
2nd 2.053 (39/19)
3rd 1.737 (33/19)
4th 1.571 (33/21)
5th 1.444 (26/18)
6th 1.348 (31/23)
Final reduction ratio 2.294 (39/17)
Clutch Wet multi-disc, manual

FRAME
Type Twin spar, cast aluminium
Wheel Travel: Front 120 mm
Wheel Travel: Rear 140 mm
Tires: Front 120/70ZR17M/C (58W)
Tires: Rear 190/55ZR17M/C (75W)
Caster (Rake) 25.5º
Trail 107mm
Steering Angle (Left/Right) 27º/27º

Read more »

MOTORCYCLE KAWASAKI NINJA 1000 2011-STREET SPORT

MOTORCYCLE KAWASAKI NINJA 1000
2011-STREET SPORT

MOTORCYCLE KAWASAKI NINJA
1000-ROAD SHOW

KAWASAKI NINJA 1000-ROAD

KAWASAKI NINJA 1000-BLACK

MOTORCYCLE KAWASAKI NINJA 1000-RED

MOTORCYCLE KAWASAKI NINJA 1000 2011-STREET SPORT,NEW, MODELS, COLOR, ENGINE, SPECIFICATION, CHASSIS, FRAME.DRIVETRAIN,
Dimensions.
ENGINE
Type Liquid-cooled, 4-stroke In-Line Four
Displacement 1,043 cm3
Bore and Stroke 77.0 x 56.0 mm
Compression Ratio 11.8:1
Valve System DOHC, 16 valves
Fuel System Fuel injection: ø38 mm x 4 (Keihin) with oval sub-throttles
Ignition Digital
Starting Electric
Lubrication Forced lubrication, wet sump

FRAME
Type Aluminium twin-tube
Wheel Travel: Front 120 mm
Wheel Travel: Rear 138 mm
Tires: Front 120/70ZR17M/C (58W)
Tires: Rear 190/50ZR17M/C (73W)
Caster (Rake) 24.5°
Trail 102 mm
Steering angle (left/right) 31° / 31°

SUSPENSION
Front: Type 41 mm inverted fork with stepless compression and rebound damping and spring preload adjustability
Rear: Type Horizontal Back-link, gas-charged, with stepless rebound damping and cam-style spring preload adjustability

Read more »

MOTORCYCLE KAWASAKI VULCAN 1700 VOYAGER 2011-TOURING

MOTORCYCLE KAWASAKI VULCAN 1700
VOYAGER 2011-TOURING

KAWASAKI VULCAN 1700 VOYAGER-
RIGHT FRONT

KAWASAKI VULCAN 1700 VOYAGER-
MIDNIGTBLUE

MOTORCYCLE KAWASAKI VULCAN 1700
VOYAGER-ROAD

MOTORCYCLE KAWASAKI VULCAN 1700
VOYAGER-RIGHT SIDE

MOTORCYCLE KAWASAKI VULCAN 1700
VOYAGER-BLACK

MOTORCYCLE KAWASAKI VULCAN 1700
VOYAGER-RIGHT SIDE

MOTORCYCLE KAWASAKI VULCAN 1700 VOYAGER 2011-TOURING,NEW, MODELS, COLOR, ENGINE, SPECIFICATION, CHASSIS, FRAME.DRIVETRAIN
Engine
Type Liquid-cooled, 4-stroke V-Twin
Displacement 1,700 cm3
Bore and Stroke 102 x 104 mm
Compression ratio 9.5:1
Valve system SOHC, 8 valves
Fuel system Fuel injection:?42 mm x 2
Ignition Digital
Starting Electric
Lubrication Forced lubrication, semi-dry sump

Drivetrain
Transmission 6-speed overdrive with positive neutral return
Final drive Belt
Primary reduction ratio 1.515 (50/33)
Gear ratios: 1st 3.077 (40/13)
2nd 1.900 (38/20)
3rd 1.407 (38/27)
4th 1.143 (32/28)
5th 0.967 (29/30)
6th 0.806 (29/36)
Final reduction ratio 2.250 (72/32)
Clutch Wet multi-disc, manual

Frame
Type Double-cradle, steel
Wheel travel: front 140 mm
Wheel travel: rear 80 mm
Tyre: front 130/90B16M/C 67H
Tyre: rear 170/70B16M/C 75H
Caster (rake) 30º
Trail 177 mm
Steering angle (left/right) 35º / 35º

Dimensions
Overall length 2,560 mm
Overall width 995 mm
Overall height 1,550 mm
Wheelbase 1,665 mm
Ground clearance 135 mm
Seat height 730 mm
Curb mass 402 kg
Fuel capacity 20 litres
Fuel Consumption 6.5 L/100 km (44 MPG)

Read more »

MOTORCYCLE KAWASAKI VULCAN 1700 VAQUERO 2011-TOURING

MOTORCYCLE KAWASAKI VULCAN
1700 VAQUERO -TOURING

MOTORCYCLE KAWASAKI VULCAN
1700 VAQUERO-RED

KAWASAKI VULCAN 1700
VAQUERO -ROAD

KAWASAKI VULCAN 1700 VAQUERO-
LEFT FRONT

KAWASAKI VULCAN 1700 VAQUERO-
RIGHT SIDE

KAWASAKI VULCAN 1700
VAQUERO-RIGHT

KAWASAKI VULCAN 1700 VAQUERO

MOTORCYCLE KAWASAKI VULCAN 1700 VAQUERO 2011-TOURING,NEW, MODELS, COLOR, ENGINE, SPECIFICATION, CHASSIS, FRAME.DRIVETRAIN.
Engine: Four-stroke, liquid-cooled, SOHC, four valve per cylinder, 52° V-twin
Displacement: 1,700cc / 103.7ci
Bore x Stroke: 102 x 104mm
Compression ratio: 9.5:1
Maximum Torque: 108 lb-ft @ 2,750 rpm
Cooling System: Liquid, plus cooling fins
Ignition: TCBI with Digital Advance
Induction: Digital fuel injection, dual 42mm throttle bodies
Transmission: 6-speed with overdrive and positive neutral finder
Frame Type: Steel, double-cradle with box-section single-tube backbone
Rake/Trail: 30° / 7.0 in.
Front Suspension / wheel travel: 45mm hydraulic fork / 5.5 in.
Rear Suspension / wheel travel: Swingarm with twin air-assisted shocks, with 4-way rebound damping / 3.1 in.
Front Tire Size: 130/90x16
Rear Tire Size: 170/70x16
Brakes, front / rear: Dual 300mm discs, dual twin-piston calipers / Single 300mm disc, twin-piston caliper
Overall length: 98.8 in.
Overall width: 38.2 in.
Overall height: 50.8 in.
Seat height: 28.7 in.
Curb weight: 835.7 lbs.**
Wheelbase: 65.6 in.
Fuel capacity: 5.3 gal.
Color Choices: Ebony, Candy Fire Red
Warranty: 36 months
Good Times™ Protection Plan: 12, 24 or 36 months

Read more »
