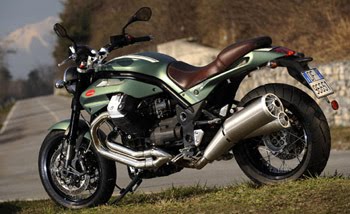

MOTORCYCLE MOTO GUZZI GRISO
1200 8V SE-ROAD SHOW
MOTO GUZZI GRISO 1200 8V
SE-FRONT
MOTO GUZZI GRISO 1200 8V SE-RED
MOTO GUZZI GRISO 1200 8V SE
MOTO GUZZI GRISO 1200 8V SE
-LEFT SIDE
MOTO GUZZI GRISO 1200 8V SE 2010
MOTO GUZZI GRISO 1200 8V SE
-RIGHT FRONT
MOTO GUZZI GRISO 1200 8V SE-
GASOLINE TANK
MOTORCYCLE MOTO GUZZI GRISO 1200 8V SE 2010-NAKED, NEW, MODEL, SPECIFICATION, COLORS, MODELS, ENGINE.
Type : Four-stroke V 90 twin
Capacity : 1,151cc
Maximum power output : 81 kW (110 CV) at 7,500 rpm
Max Torque : 110 Nm at 6,000 rpm
Exhaust system : Stainless steel two-into-one 3-way catalysed with Lambda probe.
Gearbox : 6 speed
Final drive : CA.R.C reactive drive; double universal joint with floating bevel gear, ratio 12/44 = 1 :
3,666
Front suspension : Upside down Ø 43 mm fully adjustable forks (spring preload and hydraulic for rebound
and compression) with mounting for radial calipers.
Rear suspension : Progressive single swingarm, fully adjustable monoshock with separate gas reservoir
(spring preload and hydraulic for rebound and compression).
Front brakes : Twin floating 320 mm stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear brakes : Single 282 mm fixed stainless steel disc, floating caliper with 2 parallel pistons.
Front tyre : 120/70 ZR17"
Rear tyre : 180/55 ZR17"
Length : 2,260 mm
Width : 830 mm
Height : 1,070 mm
Saddle height : 800 mm
Dry weight : 222 kg
Fuel tank capacity : 16.7 litres (reserve 3.3 litres)
